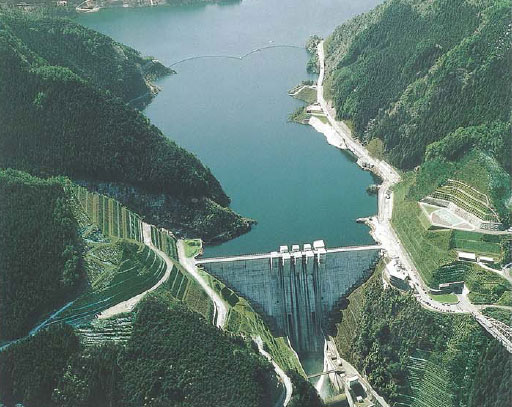

Tomisato Dam

AwardBy BusBy TrainBy Car
Dam Card
Tourist Spots
Gourmet Information
Events
slide01
Purpose FWIP *See more -> the functions of the dam
Location Shikokuchuo City, Ehime Pref. *See more
River Dozan River, Yoshino River System
Type Concrete gravity dam
Gate High head radial gate:3
Radial gate:4
Dam Height(m) 106
Crest Length(m) 250
Total Storage
(1,000m³)
52,000
Completion 2000
Details Rationalized construction methods such as RCD (Roller Compacted Dam-concrete) method, ELCM (Extended Layer Construction Method), job-mix method of cement and fly ash, a traveling cable crane and automatic concrete conveyance system were adopted to shorten the construction period and reduce the construction cost.
Tomi-chan and Sato-chan
Tomi-chan and Sato-chan

Location

Address
353-6 Tsuneyama, Tomisato-cho, Shikokuchuo City, Ehime Pref.
Phone No.
81-896-22-0302
*Ikeda Integrated Operation and Maintenance Office
Address:4235-1 Yajiri Nishiyama, Ikeda-cho, Miyoshi City, Tokushima Pref.
Phone No.81-883-72-2050

Access

Train
Apprx.40 min. by car from JR Yosan Line Iyo-Mishima sta.
Car
Apprx.40 min. from Matsuyama Expressway Mishima-Kawanoe IC
Apprx.60 min. from Matsuyama Expressway Niihama IC

Dam Card

Dam Card
Dam Card

Award

Tourist Spots

Coming soon

Events

Coming soon


^
